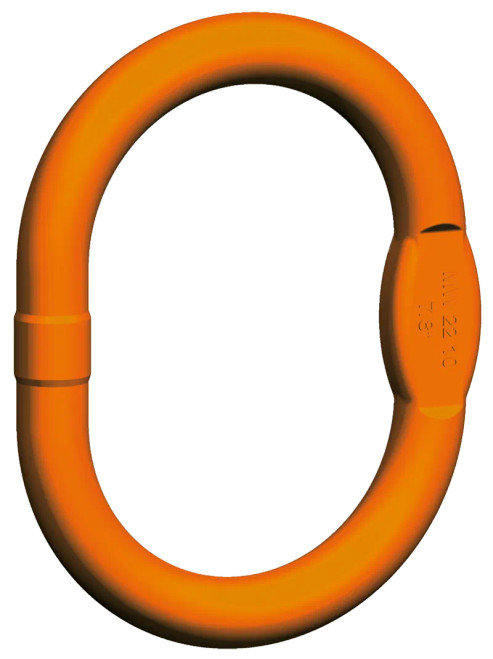

This master link is ideally suited for pewag Connex and as a component in the welded system.
Specifications
Perfection from start to finish.
- Used as a master link for I-leg and II-leg slings
- For III- and IV-leg slings it can only be used in conjunction with BW transition links in VW IV-leg assemblies
- Suitable as an end link
- The flattened section enables universal connecting options
- Manufactured according to EN 1677-4 with mechanical values for G10
- BG-approval, CE-marking and full operating manual available
- See table for the maximum crane hook size as specified by DIN 15401 and DIN 15402
Specification table
| Select | Code | Working load limit 0°–45° (kg) | Fits on single hook acc. DIN 15401 no. |
Fits on double hook acc. DIN 15402 no. |
For 1-leg slings acc. DIN 15402 no. |
For 2-leg slings acc. DIN 15402 no. |
d (mm) | t (mm) | w (mm) | s (mm) | Weight (kg/pc.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AW 10 | 1400 | 1.6 | 2.5 | 5 | 5 | 10 | 80 | 50 | 10 | 0.14 | |
| AW 13 | 2300 | 2.5 | 4 | 6+7 | 6 | 13 | 110 | 60 | 10 | 0.34 | |
| AW 16 | 3500 | 2.5 | 4 | 8 | 7 | 16 | 110 | 60 | 14 | 0.53 | |
| AW 18 | 5000 | 5 | 6 | 10 | 8 | 19 | 135 | 75 | 14 | 0.92 | |
| AW 22 | 7600 | 6 | 8 | 13 | 10 | 23 | 160 | 90 | 17 | 1.6 |
