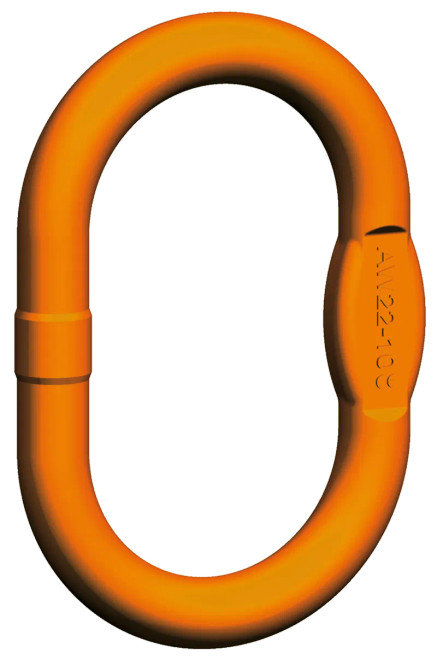

AW 45 (26-22) G10 Master Link 38.4t

AW 45 (26-22) G10 Master Link 38.4t

Pewag

$260.01
(No reviews yet) Write a Review
SKU:
4012104
Availability:
Call to check availability
Weight:
12.82 KGS
Shipping:
Calculated at Checkout

This master link is ideally suited for pewag Connex and as a component in the welded system.

Specifications
Perfection from start to finish.
  • Used as a master link for I-leg and II-leg slings
  • For III- and IV-leg slings it can only be used in conjunction with BW transition links in VW IV-leg assemblies
  • See table for the maximum crane hook size as specified by DIN 15401 and DIN 15402
  • Manufactured according to EN 1677-4 with mechanical values for G10
  • BG-approval, CE-marking and full operating manual available

Specification table

    Code Working load limit 0°-45° Fits on single hook Fits on double hook For 1-leg slings For 2-leg slings d t w s Weight
      [kg] acc. DIN 15401 no. acc. DIN 15402 no. [mm] [mm] [mm] [mm] [kg/pc.]
  AW 10 1400 1,6 2,5 5 5 10 80 50 10 0,14
AW 13 2300 2,5 4 6+7 6 13 110 60 10 0,34
AW 16 3500 2,5 4 8 7 16 110 60 14 0,53
AW 18 5000 5 6 10 8 19 135 75 14 0,92
AW 22 7600 6 8 13 10 23 160 90 17 1,6
AW 26 10000 8 10 16 13 27 180 100 20 2,46
AW 32 14000 10 12 19 16 33 200 110 26 4,14
AW 36 25100 16 20 22 19 36 260 140 29 6,22
AW 45 30800 25 32 26 22 45 340 180   12,82
AW 50 40000 32 40 32 26 50 350 190 43 16,55
AW 56 64000 32 40 - 32 56 400 200   22
AW 72 85000 50 63 - - 70 460 250   45,3
