A RUD B-ABA Bolt-On Lifting Lug with metric coarse thread holes, featuring a heavy-duty forged plate with a pivoting ring, designed for safe and secure lifting in industrial applications.

B-ABA / Bolt-on lifting lug metric coarse thread

Rud
$278.00
(No reviews yet)
Weight:
0.88 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description

The RUD B-ABA Bolt-On Lifting Lug (Metric Coarse Thread) is a heavy-duty, fixed lifting point engineered for secure bolted attachment to structures, machines, or frames. Designed for permanent or semi-permanent lifting and lashing applications, the B-ABA features a forged body and load-optimised design that ensures reliable performance under demanding industrial conditions.

Unlike traditional weld-on points, the B-ABA can be bolted directly to the load using its integrated metric coarse thread holes—making installation quick, clean, and convenient without the need for welding. The pivoting ring allows for multi-directional loading, providing flexibility and improved safety when lifting or securing loads.

Features

  • Metric coarse thread bolt holes – fast, secure, and weld-free installation

  • Forged steel construction – high strength and long-lasting durability

  • Load-optimised geometry – reduces stress concentration on the lug and mounting surface

  • Pivoting safety ring – allows movement to match the load direction

  • Corrosion-resistant finish – built for indoor and outdoor environments

  • WLL markings and batch traceability – for safe, standards-compliant use

  • Ideal for lifting, turning, and lashing applications

Applications

  • Industrial machinery and equipment lifting

  • Transport and logistics – permanent anchor for lashing and restraint

  • Steel fabrication and assembly – no-weld lifting point for large structures

  • Construction and mining – durable fixed attachment for heavy lifts

  • Maintenance operations – ideal for plant and rotating equipment handling

Why Choose the RUD B-ABA Bolt-On Lifting Lug?

  • Easy, clean installation – no welding required

  • Safe and versatile – ideal for lifting, turning, and securing loads

  • Reliable under pressure – forged and rated for heavy-duty applications

  • Backed by RUD quality – precision-engineered for professional use

Order Online at WA Lifting Equipment

The RUD B-ABA Bolt-On Lifting Lug (Metric Coarse Thread) is a smart, secure, and durable lifting solution for industrial and commercial applications. Order online now at WA Lifting Equipment for fast delivery and trusted service.

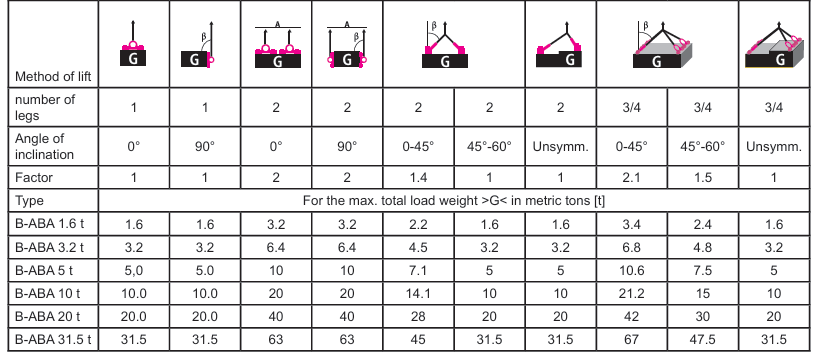

Type WLL Lifting [t] A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] T [mm] L [mm] M weight [kg/pc.] Ref.-No.
B-ABA 1.6 t 1.6 75 16 100 35 16 62.5 55 55 46.5 13 4 x M10 0.9 7906266
B-ABA 3.2 t 3.2 92 23 137 50 21 86 70 75 65 16 4 x M12 2 7906267
B-ABA 5 t 5 113 27 172 60 28 108 84 95 85 24 4 x M16 4.1 7906268
B-ABA 10 t 10 146 38 228 80 36 141 110 125 105 25 4 x M20 9.3 7906269
B-ABA 20 t 20 200 52 272 115 40 188 150 105 148 30 6 x M24 18.8 7906270
B-ABA 31.5 t 31.5 230 64 320 130 50 215 175 87.5 165 40 6 x M30 29.5 7906271
