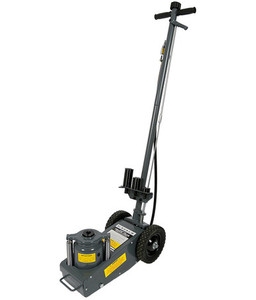

BOTTLE JACK AIR/MANUAL 35,000KG

This powerful heavy duty 35,000kg Borum Industrial Air/Hydraulic Bottle Jack packs a big punch, providing enough lifting power for use with farm vehicles, heavy-duty machinery, industrial construction equipment and more. The 2 piece removable handle is long enough to lift the load with ease and also helps to position the jack. Use this workhorse with a 110-125psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere. The safety overload valve offers extra protection if you load the jack up with too much weight. The safety overload kicks in and gently lowers the load before the operator is put in a dangerous situation.

Our Borum Industrial Quality Air/Manual Bottle Jacks are designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply.

(Previous models include product code/s; 35TABJ)

Features:

• Manufactured of superior-grade steel to exacting standards for quality and durability
• Industrial quality hydraulic cylinder unit operates at lower oil pressure to raise load, reduce wear and extend service life
• Precision machined, chrome plated and polished piston-ram
• CNC machined ports and threads
• Built-in hydraulic by-pass protection against over pumping damage
• Versatile "quick connector" design for easy removal of air hose for compact storage or remote operation
• Compact yet powerful Industrial Quality Air Turbo Motor
• Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
• Paint finish is oil, grease and dirt-resistant for easy cleanup

Specifications:

• Safe Working Capacity: 35,000kg
• Minimum Height: 264mm
• Maximum Height: 414mm
• Hydraulic Stroke: 150mm
• Base Area: 210x280mm
• Operating Air Pressure: 110-125psi
• Air Inlet Fitting: 1/4" x 18NPT
• Nett Weight: 29kg
• Carton: 265 x 230 x 300mm
• Gross Weight: 30kg

IMPORTANT:   NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.

Intended Use

For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
