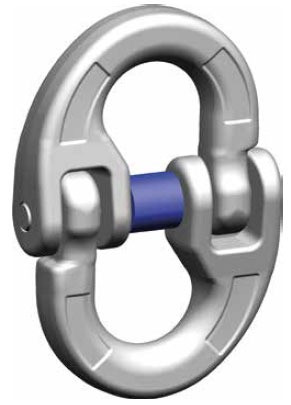

CWI 5 Connecting Link

This stainless steel connecting link is drop-forged and stamped and consists of two symmetrical halves made from high-grade stainless steel.

For a seamless connection.

Guaranteed to be compatible with all pewag winner inox components of the same nominal size
The suspension bolt is locked by a stainless steel coil spring (mat. 1.4462) with a synthetic leeve
The bolt and the shell are available as spare parts
Resistant to sea water and ideally suited for use in water and wastewater applications
Can also be used in connection with chemicals and food products, but with certain restrictions
Clearly identifiable by a stamp, the CE mark is standard

Code	Working load limit	e	c	s	t	d	b	g	Weight
	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
CWI 5-6	630	36	7	10	11	7	34	13	0,06
CWI 6-6	900	42	8	11	12	7	40	13	0,08
CWI 7-6	1250	54	9	13	14	9	51	17	0,14
CWI 8-6	1600	58	10	13	14	8.5	51	17	0,16
CWI 10-6	2500	73	13	18	18	13	70	25	0,37
CWI 13-6	4250	92	17	23	25	17	86	29	0,76
CWI 16-6	6300	104	21	32	28	20	105	37	1,41
