Specifications
Better to wear out than to rust out.

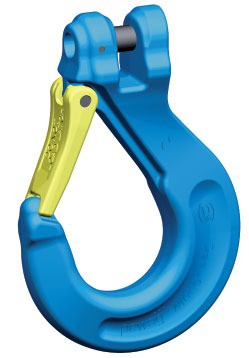

- This eye sling hook is universally usable and comes with a forged and galvanised safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts.
- The safety catch with a latch, the safety pin and the stainless spring are available as a spare parts set for each hook and easy and quick to replace by a competent person.
- The hook is manufactured according to EN 1677-2 with the mechanical values of G12, comes with BG-approval and a light blue powder coating.
- The combination of the HSWP eye sling hook and the pewag winner pro Connex System simply can’t be beaten.
Specification table
| Code | Working load limit (kg) | Lashing capacity (kN) | e (mm) | h (mm) | a (mm) | d1 (mm) | d2 (mm) | g1 (mm) | b (mm) | Weight (kg/pc.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HSWP 7/8 | 3000 | 60 | 106 | 27 | 19 | 25 | 11 | 26 | 88 | 0.65 |
| HSWP 10 | 5000 | 100 | 131 | 33 | 26 | 34 | 16 | 31 | 108 | 1.29 | |
| HSWP 13 | 8000 | 160 | 164 | 43 | 33 | 43 | 19 | 39 | 132 | 2.43 |
