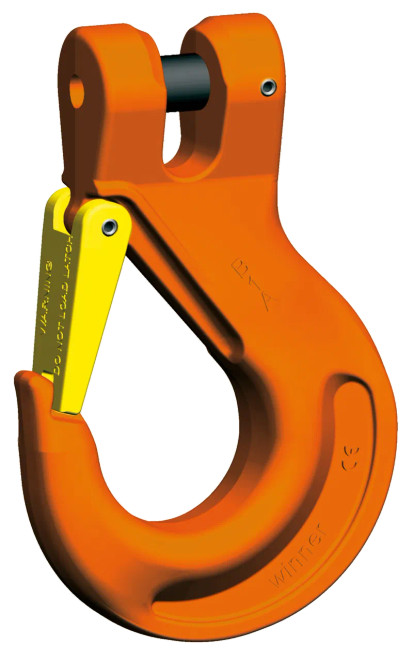

KHSW 7 G10 Clevis Sling Hook

These hooks are used for easy and quick connection directly to the chain.

By hook (no crook).

The safety catch locks into the tip of the hook, thereby providing excellent protection against lateral shifts
The clevis sling hook is manufactured in accordance with EN 1677-2 with the mechanical values for G10
Comes with BG-approval and CE-marking and guarantees top performance
A competent person will require no special tools for the quick and easy assembly of the chain
The safety catch set consists of a die-forged safety catch, a stainless steel spring and a safety sleeve, all of which are easy to assemble, without the need for special tools
The coupling pin and the retaining pin are available as a KHSW spare parts set
The SFGW safety catch set may also be used as a spare part

Code	Working load limit	e	h	a	d	g1	b	Weight
	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
KHSW 5/6	1400	69	20	15	7.4	19	66	0,25
KHSW 7	1900	95	28	19	9	26	90	0,61
KHSW 8	2500	95	28	19	10	26	90	0,62
KHSW 10	4000	109	35	25	12.5	31	108	1,07
KHSW 13	6700	136	41	34	16	39	131	2,12
KHSW 16	10000	155	49	37	20	45	153	3,49
KHSW 19/20	16000	184	53	51	24	53	177	5,64
KHSW 22	19000	214	62	52	27	62	196	9,05
