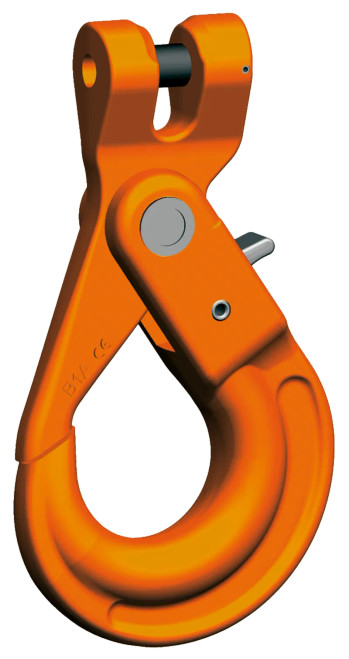

KLHW 26 G10 Clevis Self Locking Hook

KLHW 26 G10 Clevis Self Locking Hook

Pewag

$1,088.09
(No reviews yet) Write a Review
SKU:
4019351
Availability:
Call to check availability
Weight:
21.33 KGS
Shipping:
Calculated at Checkout

This clevis safety hook closes and locks automatically and has a significantly larger jaw opening than the KHSW clevis hook, making it much more versatile.

Specifications
Guaranteed stress-resistant.
  • The hook corresponds to EN 1677-3 with the mechanical values for G10
  • For safety reasons, it cannot be opened while under load
  • Assembly is quick and easy and does not require any special tools
  • The hook comes with BG-approval, CE-marking and exchangeable spare parts
  • The coupling pin and retaining pin are available as a KBSW spare parts set, as is the VLHW locking set on the back of the hook

Specification table

  Code Working load limit e h a b d g s max. Weight
    [kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg/pc.]
KLHW 5/6 1400 94 20 17 71 7.4 28 1 0,56
KLHW 7 1900 123 26 20 88 9 34 1 0,87
KLHW 8 2500 123 26 20 88 10 34 1 1
KLHW 10 4000 144 30 29 107 12.5 45 1 1,61
KLHW 13 6700 180 40 35 138 16 52 1.5 3,25
KLHW 16 10000 218 50 41 168 20 60 2 5,95
KLHW 19/20 16000 259 62 50 194 24 70 2 12,89
KLHW 22 19000 286 65 52 211 27 81 2 15,91
KLHW 26 26500 338 79 61 253 33 100 2 21,33
