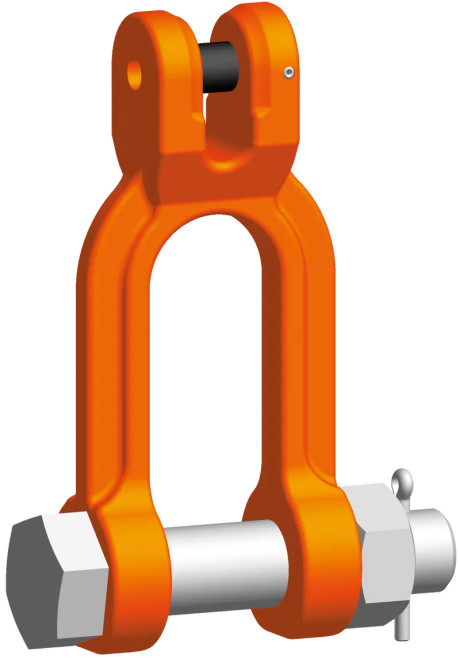

KSCHW 13 G10 Clevis Shackle

Pewag

$206.48

(No reviews yet) Write a Review

Current Stock:

Quantity:

This high-performance shackle consists of a special screw, nut and split pin, which makes losing the screw practically impossible.

The missing link.

Wide opening makes this shackle extremely versatile
The clevis system makes linking the shackle to the chain quick and simple, without the need for an additional connecting element
Manufactured according to EN 1677-1 with mechanical values for G10, and comes with a full operating manual
BG-approval and CE-marking
Assembly must be handled by a competent person and no special tools are required

Code	Working load limit	e	e1	b min.	a	d	c	d1	Weight
	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
KSCHW 7	1900	76	54	26	12	9	31	16	0,64
KSCHW 8	2500	76	54	26	12	10	31	16	0,66
KSCHW 10	4000	105	76	32	16	12.5	39	20	1,22
KSCHW 13	6700	113	77	42	21	16	50	24	2,64

KSCHW 10
KSCHW 13
