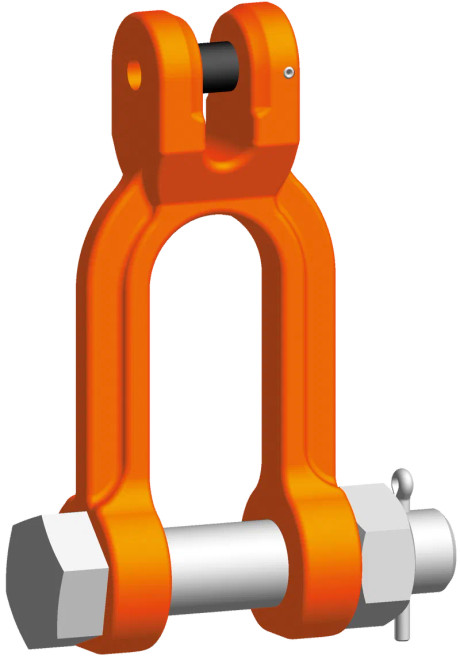

KSCHW 7 G10 Clevis Shackle

KSCHW 7 G10 Clevis Shackle

Pewag

$119.97
(No reviews yet) Write a Review
SKU:
4088056
Availability:
Call to check availability
Weight:
0.64 KGS
Shipping:
Calculated at Checkout

This high-performance shackle consists of a special screw, nut and split pin, which makes losing the screw practically impossible.

Specifications
The missing link.
  • Wide opening makes this shackle extremely versatile
  • The clevis system makes linking the shackle to the chain quick and simple, without the need for an additional connecting element
  • Manufactured according to EN 1677-1 with mechanical values for G10, and comes with a full operating manual
  • BG-approval and CE-marking
  • Assembly must be handled by a competent person and no special tools are required

Specification table

  Code Working load limit e e1 b min. a d c d1 Weight
    [kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg/pc.]
KSCHW 7 1900 76 54 26 12 9 31 16 0,64
KSCHW 8 2500 76 54 26 12 10 31 16 0,66
KSCHW 10 4000 105 76 32 16 12.5 39 20 1,22
KSCHW 13 6700 113 77 42 21 16 50 24 2,64

KSCHW 10
KSCHW 13
