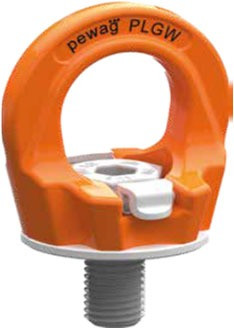

PLGW MAX 2.3T M20 Long Bolt Rotating Supreme Eyebolt

PLGW MAX 2.3T M20 Long Bolt Rotating Supreme Eyebolt

Pewag

$223.18
(No reviews yet) Write a Review
SKU:
4019911
Availability:
Call to check availability
Weight:
1.00 KGS
Shipping:
Calculated at Checkout

The PLGW MAX is a long bolt lifting point from the pewag winner profilift family.

Specifications
Pewag winner PLGW Gamma supreme eyebolt. Close to perfection.
  • Can be tightened by hand (only supreme)
  • Rotatable 360°
  • Can be aligned in the direction of pull
  • 4-fold safety against breakage in all directions
  • 100% crack tested screw
  • Chrome VI-free corrosion protection
  • Same thread size but much higher working load limit

Specification table

Method of lifting
Number of legs 1 1 2 2 2 2 3+4 3+4 2 3+4
Angle of inclination 0° 90° 0° 90° 0°-45° 45°-60° 0°-45° 45°-60° asymm asymm
Code Thread Torque Working load limit (G)
  [mm] [Nm] [kg]
PLGW 0,3 t M8 Simply tighten by hand 1000 300 2000 600 420 300 630 450 300 300
PLGW 0,5 t M10 Simply tighten by hand 1500 500 3000 1000 700 500 1060 750 500 500
PLGW 0,7 t M12 Simply tighten by hand 2000 700 4000 1400 980 700 1480 1050 700 700
PLGW 1,5 t M16 Simply tighten by hand 4000 1500 8000 3000 2100 1500 3180 2200 1500 1500
PLGW 2,3 t M20 Simply tighten by hand 5000 2300 10000 4600 3200 2300 4800 3400 2300 2300
PLGW 3,2 t M24 Simply tighten by hand 6500 3200 13000 6400 4500 3200 6700 4800 3200 3200
PLGW 4,9 t M30 Simply tighten by hand 12000 4900 24000 9800 6900 4900 10300 7300 4900 4900
PLGW 7 t M36 Simply tighten by hand 15000 7000 30000 14000 9800 7000 14800 10500 7000 7000
PLGW 9 t M42 Simply tighten by hand 22000 9000 44000 18000 12600 9000 19000 13500 9000 9000
PLGW 12 t M48 Simply tighten by hand 30000 12000 60000 24000 16900 12000 25400 18000 12000 12000
  Code Thread Working a b c d e f n n max Weight
      load limit [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg/unit]
      [kg]
PLGW 0,3 t M8 300 25 45 10 27 53 35 15 90 6 0,2
PLGW 0,5 t M10 500 25 45 10 27 53 35 15 160 6 0,21
PLGW 0,7 t M12 700 30 55 12 32 63 43 20 160 8 0,29
PLGW 1,5 t M16 1500 35 64 14 36 70 50 25 160 10 0,48
PLGW 2,3 t M20 2300 40 73 16 41 81 54 30 160 12 0,58
PLGW 3,2 t M24 3200 50 86 18 50 93 69 35 - 14 1,1
PLGW 4,9 t M30 4900 60 110 25 60 114 90 45 - 17 2,2
PLGW 7 t M36 7000 70 132 31 70 136 108 55 - 19 3,8
PLGW 9 t M42 9000 80 152 36 72 153 126 65 - 22 5,7
PLGW 12 t M48 12000 95 179 42 88 179 148 75 - 24 8,9
