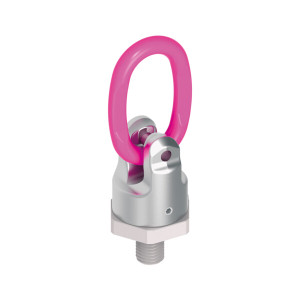

A RUD PP-VIP PowerPoint swivel lifting point with UNC thread, featuring a 360° rotatable ring and forged construction, designed for safe, multi-directional lifting with imperial-thread compatibility.

PP-VIP PowerPoint® - Direct VIP Chain Connection - UNC Thread; Rud

Rud
$199.00 - $939.00
(No reviews yet)
Weight:
0.24 KGS
Current Stock:
Adding to cart… The item has been added
Description

PP-VIP PowerPoint® - Direct VIP Chain Connection - UNC Thread; Rud

The RUD PP-VIP PowerPoint (UNC Thread) is a premium swivel lifting point designed for multi-directional lifting and turning applications where imperial threads (UNC) are required. Equipped with a 360° rotatable lifting ring, the PP-VIP aligns with the direction of pull under load, eliminating side-load risks and improving safety and control during lifting operations.

Forged from high-tensile steel and load-rated for industrial use, the PP-VIP is ideal for use on machinery, dies, fabricated components, and transport frames across industries such as construction, mining, maintenance, and logistics.

Features

  • UNC (imperial) thread – for use with standard American-threaded tapped holes

  • 360° rotating lifting ring – aligns with the load direction automatically

  • Forged from high-strength steel – robust and load-tested

  • Load-rated and marked with WLL and batch number

  • Compact and low-profile design – suitable for tight spaces

  • Corrosion-resistant powder-coated finish

  • Compatible with slings, hooks, shackles, and chain systems

Applications

  • Machinery and plant lifting – reliable lifting point for moving heavy equipment

  • Steel fabrication and tool handling – rotatable anchor for turning and tilting

  • Mining, construction, and transport – safe lifting on-site and in transit

  • Maintenance and rigging – easy to install and align under load

Why Choose the RUD PP-VIP PowerPoint (UNC Thread)?

  • Built for safe, multi-directional lifting with UNC thread

  • Fully rotatable to prevent side-load failures

  • Compact, bolt-on design for fast installation

  • Engineered and certified by RUD – global leaders in lifting safety

Order Online at WA Lifting Equipment

The RUD PP-VIP PowerPoint – UNC Thread is your swivel lifting solution for imperial-threaded applications requiring strength, flexibility, and uncompromised safety.
Order online now at WA Lifting Equipment for fast shipping and expert support.

Type WLL (lbs) A B C D E F Standard F Vario G M T Weight (lbs) torque Ref-no. Standard
PP-S-0.63t-1/2"-13UNC 1385 1/2" 2 15/16" 23/32" 1 1/16" 1 13/32" 23/32" 1/2 - 1 3/4" 1/2" 1/2" 4 1/16" 0.9 10 Nm 7990720
PP-S-1.5t-5/8"-11UNC 3300 22/32" 3 13/16" 15/16" 1 5/8" 1 5/8" 1" 5/8 - 2 5/32" 2" 5/8" 5" 2 30 Nm 7989908
PP-S-2.5t-3/4"-10UNC 5500 1 1/8" 5" 1 5/8" 2 13/32" 2 1/32" 1 3/8" - - 3/4" 7 3/8" 3.7 70 Nm 7989909
PP-S-2.5t-7/8"-9UNC 5500 1 1/8" 5" 1 5/8" 2 13/32" 2 5/32" 1 3/8" 1 - 2 3/32" 2 13/32" 7/8" 7 3/8" 3.8 80 Nm 7989910
PP-S-4t-1"-8UNC 8800 1 13/32" 5 7/8" 2" 3" 2 15/32" 1 3/4" 1 1/4 - 3 1/4" 3" 1" 8 15/16" 7.7 150 Nm 7989911
PP-S-5t-1 1/4"-7UNC 11000 1 7/8" 6 7/8" 2 3/8" 3 15/16" 3 1/2" 2" 2 1/4 - 3 1/4" 4" 1 1/4" 12 1/2" 14.3 225 Nm 7989912
PP-S-8t-1 1/2"-6UNC 17600 1 15/16" 8 3/16" 3" 3 15/16" 4" 2 1/8" 2 1/4 - 3 1/4" 4" 1 1/2" 12 2/16" 20.2 410 Nm 7989913
