Snorkel S3013 Mini Electric Scissor Lift – Lithium Battery (5.79m Working Height)

Snorkel
SKU:
S3013 Mini
$15,950.00
(No reviews yet)
Weight:
1,315.00 KGS
Current Stock:
Adding to cart… The item has been added

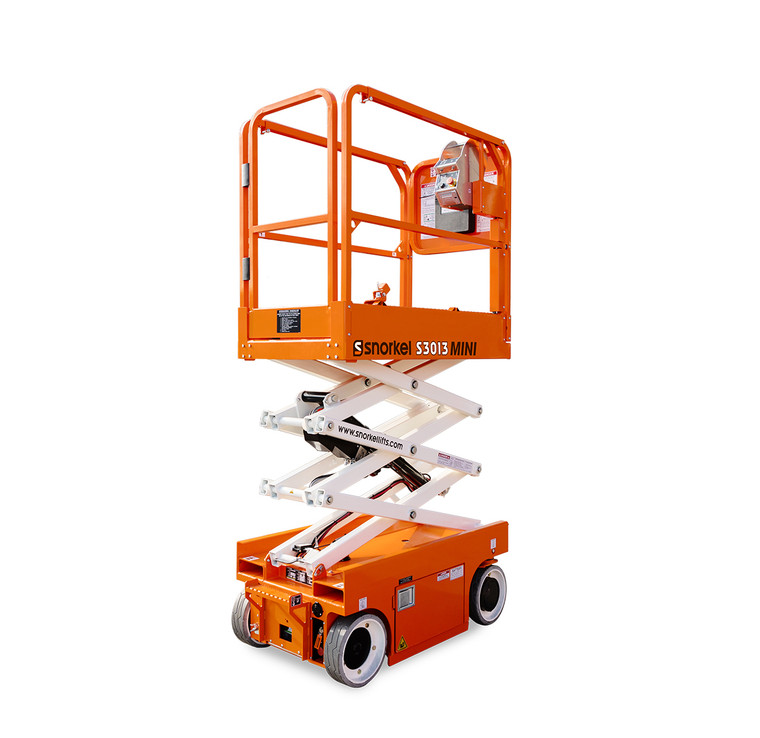

Snorkel S3013 Mini Electric Scissor Lift – Lithium Battery (5.79m Working Height)

The Snorkel S3013 Mini is a lightweight, ultra-compact electric scissor lift powered by a 24V 60Ah lithium battery. Designed for quiet, emission-free operation with no hydraulic hoses, it’s ideal for tight indoor spaces like warehouses, retail stores, and order-picking environments.

Despite its small footprint, the S3013 Mini delivers an impressive working height of 5.79m and a 272kg platform capacity. Its roll-out deck extension, proportional controls, and large non-marking tyres make it safe and easy to operate in confined areas.

Key Specifications:

  • Max. Working Height: 5.79m

  • Platform Height: 3.96m

  • Platform Capacity: 272kg (2-person indoor / 1-person outdoor)

  • Platform Size (Stowed): 0.74m x 1.32m

  • Platform Size (Extended): 0.74m x 1.93m

  • Deck Extension: 0.6m

  • Overall Width: 0.76m

  • Stowed Height: 1.85m

  • Overall Length: 1.44m

  • Weight: 793.7kg

  • Drive Speed (Stowed/Elevated): 3.21kph / 0.6kph

  • Gradeability: 25%

  • Power Source: 24V 60Ah lithium battery

  • Charger: 20A automatic onboard charger

Features:

  • 100% electric – no hydraulic hoses

  • Ultra-compact width (0.76m) – fits through standard doorways

  • Roll-out platform extension with dual locks

  • Proportional joystick controls

  • Platform overload protection

  • Descent and motion alarms

  • Manual emergency lowering system

  • 110V (15A) power outlet to platform

  • Integrated diagnostics, hour meter, and battery meter

  • Non-marking tyres – largest in class

  • Forklift pockets and crane lifting points

  • ANSI A92.20 compliant

Warranty:

  • 2-Year Parts & Labour Warranty

  • 5-Year Lithium Battery & Structural Warranty

Click here to download product specification sheet
