The Spread Anchor 1.4T in 30x160mm configuration, featuring extended shaft length for deeper concrete embedment—ideal for lifting mid-weight precast elements with added safety.

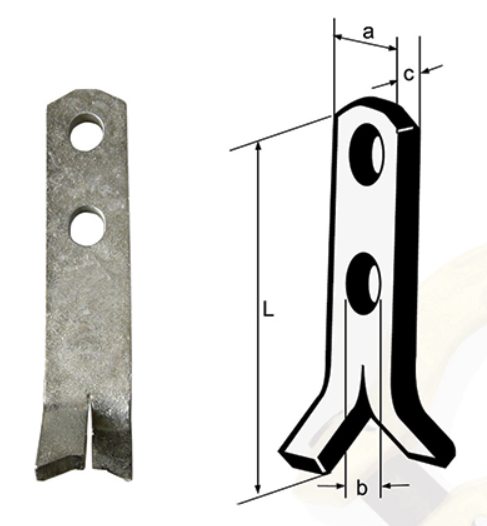

Spread Anchor 1.4T 30x160mm

Austlift
SKU:
731416
Availability:
Usually ship within 24-48 hours
$5.60
(No reviews yet)
Weight:
0.20 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 1.4T 30x160mm is built for applications where deeper embedment is required in precast concrete components. With a 160mm shaft length, it offers increased anchorage for added load security—while maintaining a 1.4-tonne Working Load Limit.

Ideal for lifting panels, pits, stairs, and blocks, this anchor combines a grooved shaft and flared foot to ensure maximum bond within the concrete. It's fully compatible with ring clutch lifting systems and standard recess formers, making it a dependable solution for medium-duty lifting applications.

Features:

  • 1.4-tonne Working Load Limit

  • 30x160mm long shaft for deeper embedment

  • Spread foot design for secure concrete anchoring

  • Suitable for axial and angled lifts (see load chart)

  • Reusable under proper handling and care

  • Compatible with ring clutches and standard formers

Applications:

  • Deep section precast panels

  • Utility pits and water tanks

  • Precast stairs and structural blocks

  • Medium-load concrete components

  • Civil and industrial construction

Why Choose the Spread Anchor 1.4T 30x160mm?

  • Longer anchor length for greater concrete engagement

  • Safe lifting performance up to 1.4 tonnes

  • Works with your existing lifting systems

  • Ideal for situations needing additional anchorage depth

Call to Action (Order Online):
Secure your heavy lifts with the Spread Anchor 1.4T 30x160mm.
Order online now from WA Lifting Equipment—the experts in safe, certified precast lifting solutions.
