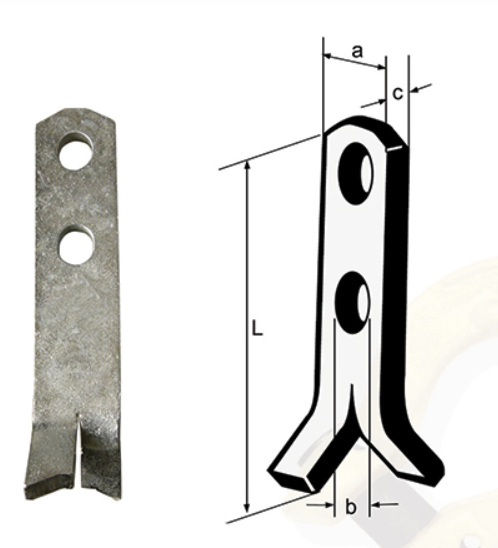

Spread Anchor 10T 60x370mm featuring a long grooved shaft and wide flared foot—engineered for secure embedment in thick precast concrete components up to 10 tonnes.

Spread Anchor 10T 60x370mm

Austlift
SKU:
739037
$59.40
(No reviews yet)
Weight:
3.10 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 10T 60x370mm is a high-strength lifting anchor designed for heavy-duty precast concrete applications where deeper embedment is essential. With a 370mm shaft and 10-tonne Working Load Limit, it offers increased anchorage for thick, high-mass concrete elements such as bridge sections, large tanks, and structural panels.

The wide flared foot and grooved shaft deliver superior concrete grip and load distribution. This anchor integrates seamlessly with heavy-duty ring clutches and standard recess formers, providing safe and reliable lifting performance for demanding construction and infrastructure projects.

Features:

  • 10-tonne Working Load Limit

  • 60x370mm long shaft for deep embedment

  • Flared foot ensures strong anchorage and load transfer

  • Grooved shaft for secure concrete bonding

  • Suitable for axial and angled lifts (see load data)

  • Compatible with heavy-duty lifting clutches and formers

Applications:

  • Precast bridge beams and foundation panels

  • Large concrete tanks and culverts

  • Infrastructure and civil construction elements

  • Structural blocks and industrial precast units

  • Precast yards handling oversized components

Why Choose the Spread Anchor 10T 60x370mm?

  • Built for deep embedment in thick, heavy precast elements

  • Provides safe, consistent lifting of up to 10 tonnes

  • Durable and reusable in high-load environments

  • Works with standard lifting systems for efficiency

Call to Action (Order Online):
Ensure deep, secure lifting with the Spread Anchor 10T 60x370mm.
Order online now from WA Lifting Equipment—your trusted source for certified heavy-duty precast lifting solutions.
