Spread Anchor 10T 60x520mm with extended grooved shaft and wide flared foot—built for deep embedment and lifting of large precast concrete structures up to 10 tonnes.

Spread Anchor 10T 60x520mm

Austlift
SKU:
739052
Availability:
Usually ship within 24-48 hours
$81.20
(No reviews yet)
Weight:
4.50 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 10T 60x520mm is engineered for the most demanding precast lifting jobs where ultra-deep embedment is required. With a 520mm shaft length and a 10-tonne Working Load Limit, this anchor provides unmatched stability and anchorage in extremely thick concrete sections.

The grooved shaft and wide flared foot maximise concrete bond and load transfer, ensuring secure lifting of oversized precast elements such as bridge beams, large tanks, and foundation panels. Compatible with heavy-duty ring clutch systems and standard recess formers, this anchor delivers safe, reliable performance on high-load job sites.

Features:

  • 10-tonne Working Load Limit

  • 60x520mm extra-long shaft for ultra-deep embedment

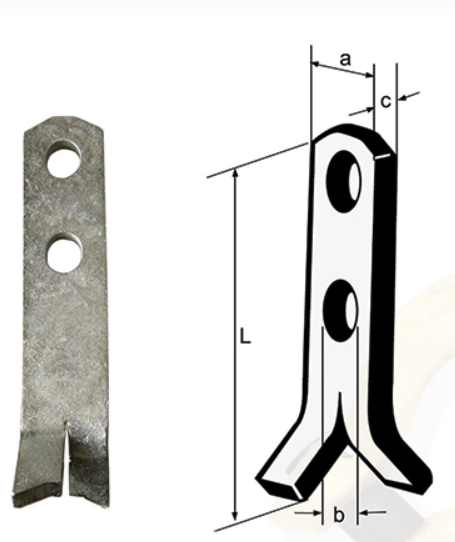

  • Flared foot ensures excellent load distribution

  • Grooved shaft enhances concrete bonding strength

  • Suitable for axial and angled lifting (check technical specs)

  • Compatible with heavy-duty ring clutches and formers

Applications:

  • Oversized precast bridge segments and beams

  • Large concrete tanks, culverts, and vaults

  • Heavy foundation and infrastructure panels

  • Structural blocks for civil and commercial builds

  • Precast yards producing ultra-heavy elements

Why Choose the Spread Anchor 10T 60x520mm?

  • Designed for lifting the heaviest and thickest precast elements

  • Delivers deep-set security and high load capacity

  • Reusable and engineered for industrial-scale applications

  • Seamless integration with existing lifting gear

Call to Action (Order Online):
Lift your heaviest precast components with confidence using the Spread Anchor 10T 60x520mm.
Order online now from WA Lifting Equipment—your trusted partner for high-capacity concrete lifting solutions that meet the toughest demands.
