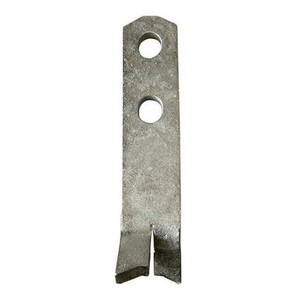

Spread Anchor 3T 40x280mm
AustliftDescription:
The Spread Anchor 3T 40x280mm is designed for high-load precast lifting where deeper embedment is required. With a 40mm shaft diameter and 280mm length, this anchor delivers superior anchorage and load stability for concrete elements up to 3 tonnes.
Perfect for thick precast panels, tanks, or large structural blocks, this anchor’s flared foot and grooved shaft ensure a secure concrete bond. It integrates seamlessly with standard ring clutch lifting systems and recess formers, providing a safe, consistent lifting solution for civil, commercial, and infrastructure applications.
Features:
-
3-tonne Working Load Limit
-
40x280mm long shaft for deeper embedment
-
Flared foot for reliable anchorage in thick concrete
-
Grooved shaft for optimal concrete engagement
-
Suitable for axial and angled lifts (refer to load data)
-
Compatible with ring clutch systems and recess formers
Applications:
-
Thick precast concrete walls and panels
-
Utility tanks, vaults, and drainage pits
-
Heavy structural blocks and bridge components
-
Infrastructure and commercial construction
-
Civil precast yards and heavy-duty installations
Why Choose the Spread Anchor 3T 40x280mm?
-
Built for deep, secure placement in heavy concrete
-
Provides reliable lifting up to 3 tonnes
-
Ideal for thick or high-load precast applications
-
Trusted by professionals in demanding environments
Call to Action (Order Online):
Ensure secure deep-set lifting with the Spread Anchor 3T 40x280mm.
Order online now at WA Lifting Equipment—your trusted source for industrial-grade precast lifting anchors.
