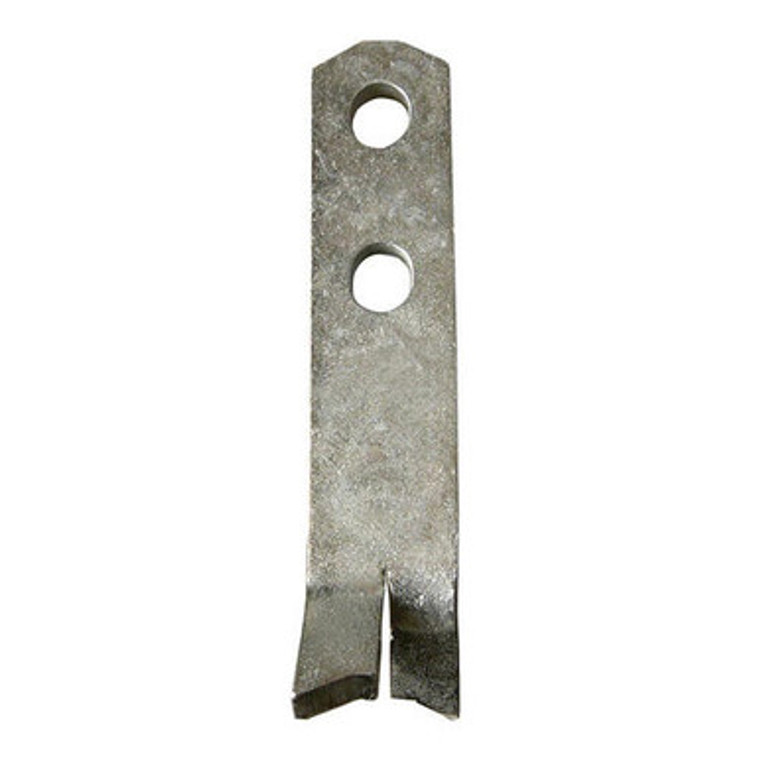

Spread Anchor 5T 40x240mm with grooved long shaft and flared foot—engineered for secure lifting of heavy precast concrete panels and structural components.

Spread Anchor 5T 40x240mm

Austlift
SKU:
735024
Availability:
Usually ship within 24-48 hours
$26.10
(No reviews yet)
Weight:
1.00 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 5T 40x240mm is a long-shaft lifting anchor built to handle high-load precast concrete lifting with maximum safety. With a Working Load Limit of 5 tonnes and a 240mm shaft length, it provides deeper embedment and improved load transfer in thicker concrete elements.

The flared foot design ensures firm anchorage, while the grooved shaft enhances concrete bond for secure lifting. This anchor is fully compatible with industry-standard ring clutches and recess formers, making it an ideal solution for lifting panels, tanks, blocks, and infrastructure elements on-site or in the yard.

Features:

  • 5-tonne Working Load Limit

  • 40x240mm shaft for deep embedment

  • Flared foot for secure load distribution

  • Grooved shaft improves concrete bonding

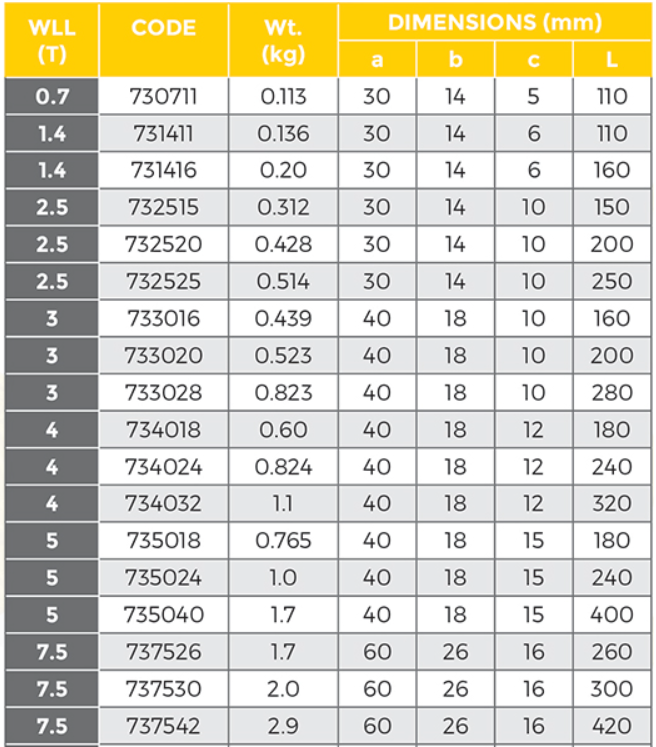

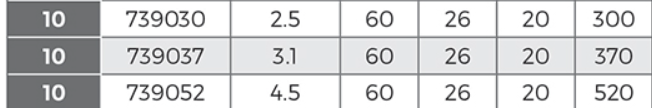

  • Suitable for vertical and angled lifts (refer to technical data)

  • Compatible with standard lifting systems and accessories

Applications:

  • Heavy-duty precast wall and floor panels

  • Concrete pits, tanks, and utility vaults

  • Structural precast blocks and stair flights

  • Infrastructure and bridge components

  • Commercial and civil precast construction

Why Choose the Spread Anchor 5T 40x240mm?

  • Provides deeper, more secure embedment for large elements

  • Built for consistent lifting of up to 5 tonnes

  • Durable and reusable under proper site handling

  • Designed to integrate with existing lifting equipment

Call to Action (Order Online):
Upgrade your lifting reliability with the Spread Anchor 5T 40x240mm.
Order online now at WA Lifting Equipment—your expert supplier of certified precast lifting anchors and accessories.
