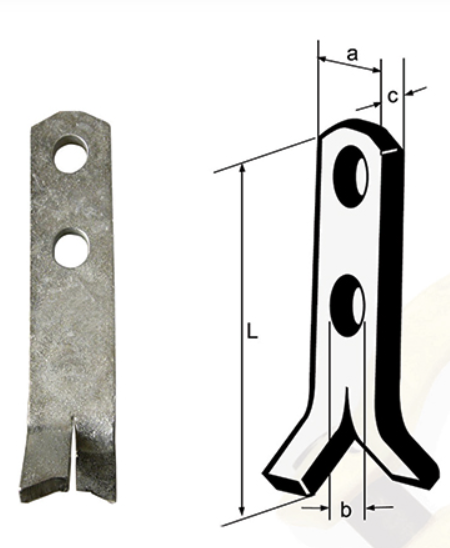

Spread Anchor 5T 40x400mm featuring an extended grooved shaft and flared foot—ideal for safe lifting of thick, heavy-duty precast concrete elements up to 5 tonnes.

Spread Anchor 5T 40x400mm

Austlift
SKU:
735040
Availability:
Usually ship within 24-48 hours
$27.80
(No reviews yet)
Weight:
1.70 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 5T 40x400mm is a high-capacity lifting anchor engineered for the heaviest lifting tasks in precast construction. With a 400mm shaft and 5-tonne Working Load Limit, it offers extra-deep embedment and strong anchorage in thick concrete sections—ensuring safe and secure handling of large structural components.

Its flared foot and grooved shaft provide excellent load transfer and concrete bond, making it ideal for lifting bridge beams, tanks, thick panels, and infrastructure units. Compatible with industry-standard ring clutches and recess formers, it’s the reliable choice for civil and commercial precast projects.

Features:

  • 5-tonne Working Load Limit

  • 40x400mm shaft for maximum embedment depth

  • Flared foot for superior anchorage and load distribution

  • Grooved shaft for optimal concrete bonding

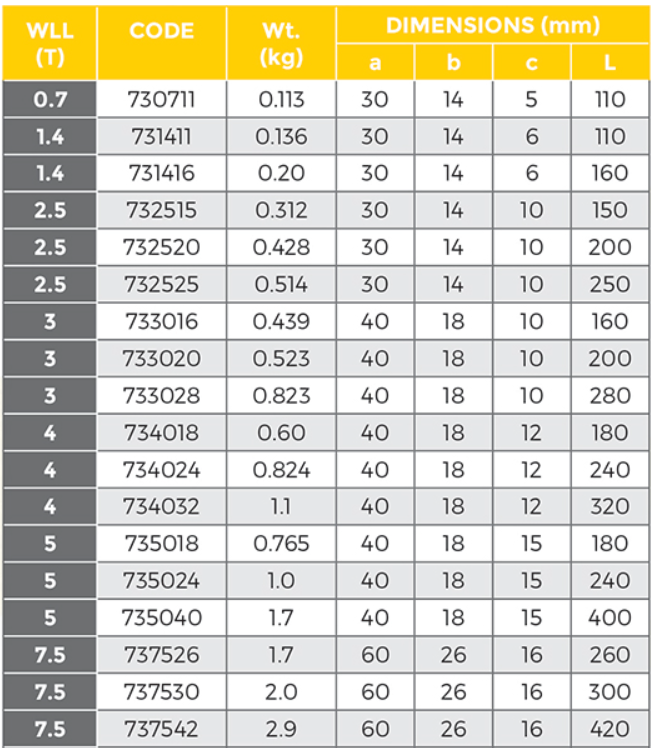

  • Suitable for axial and angled lifts (refer to technical specs)

  • Works with standard clutches and formers

Applications:

  • Bridge segments and large precast beams

  • Thick precast walls, tanks, and vaults

  • Heavy structural concrete blocks

  • Infrastructure and civil works

  • Precast manufacturing for large-scale projects

Why Choose the Spread Anchor 5T 40x400mm?

  • Provides maximum embedment for secure lifting in thick elements

  • Built for the heaviest precast lifting applications

  • Trusted for safety, strength, and performance

  • Reusable and compatible with standard lifting systems

Call to Action (Order Online):
Tackle your toughest lifting challenges with the Spread Anchor 5T 40x400mm.
Order online now from WA Lifting Equipment—Australia’s trusted supplier of certified precast lifting solutions.
