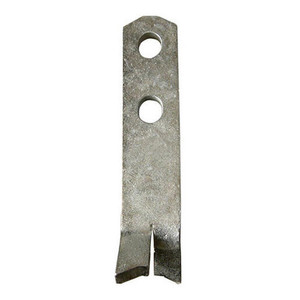

Spread Anchor 7.5T 60x300mm
AustliftDescription:
The Spread Anchor 7.5T 60x300mm is built for lifting large, heavy precast concrete elements in demanding construction environments. With a 7.5-tonne Working Load Limit and a robust 60mm x 300mm body, this anchor offers deep embedment and superior anchorage—making it ideal for critical infrastructure and civil engineering applications.
Its wide flared foot ensures secure load distribution, while the grooved shaft enhances concrete bonding. Compatible with heavy-duty ring clutch systems and standard recess formers, this anchor delivers the strength and safety required for large precast units and structural components.
Features:
-
7.5-tonne Working Load Limit
-
60x300mm shaft for strong, deep embedment
-

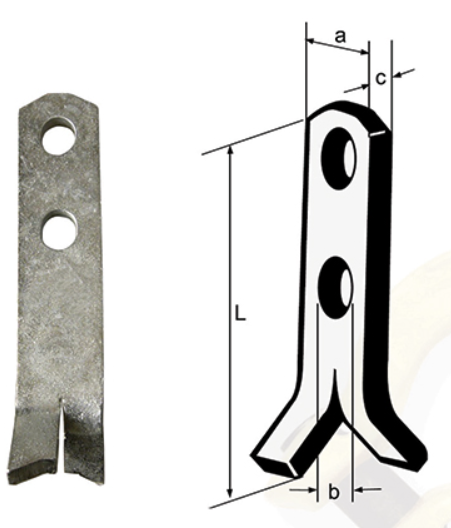

Wide flared foot for maximum load anchorage
-
Grooved shaft for enhanced concrete grip
-
Designed for vertical and angled lifts (check load data)
-
Compatible with heavy-duty clutches and formers
Applications:
-
Bridge beams and heavy infrastructure panels
-
Precast tanks, vaults, and culverts
-
Large structural walls and stair elements
-
Civil and commercial construction projects
-
Precast production yards with high-mass components
Why Choose the Spread Anchor 7.5T 60x300mm?
-
Built for extreme lifting conditions and heavy concrete elements
-
Provides maximum safety with deep embedment
-
Reusable and designed for industrial-scale use
-
Integrates with existing heavy-duty lifting systems
Call to Action (Order Online):
Lift with complete confidence using the Spread Anchor 7.5T 60x300mm.
Order online now from WA Lifting Equipment—your trusted partner in high-capacity precast concrete lifting solutions.
