Spread Anchor 7.5T 60x420mm featuring an extended grooved shaft and flared foot—designed for secure lifting of large, thick precast concrete structures up to 7.5 tonnes.

Spread Anchor 7.5T 60x420mm

Austlift
SKU:
737542
Availability:
Usually ship within 24-48 hours
$51.50
(No reviews yet)
Weight:
2.90 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description:
The Spread Anchor 7.5T 60x420mm is a high-strength lifting anchor developed for extremely heavy and thick precast concrete elements. With a long 420mm shaft and 60mm diameter, it provides maximum embedment depth, improved load transfer, and safe lifting performance up to 7.5 tonnes.

Its flared foot delivers outstanding anchorage, while the grooved shaft ensures solid concrete bonding. Ideal for bridge segments, tanks, culverts, and infrastructure components, this anchor is fully compatible with heavy-duty ring clutch systems and standard recess formers—ensuring safety and efficiency across large-scale construction projects.

Features:

  • 7.5-tonne Working Load Limit

  • 60x420mm extra-long shaft for deep embedment

  • Wide flared foot for superior load distribution

  • Grooved shaft for strong concrete engagement

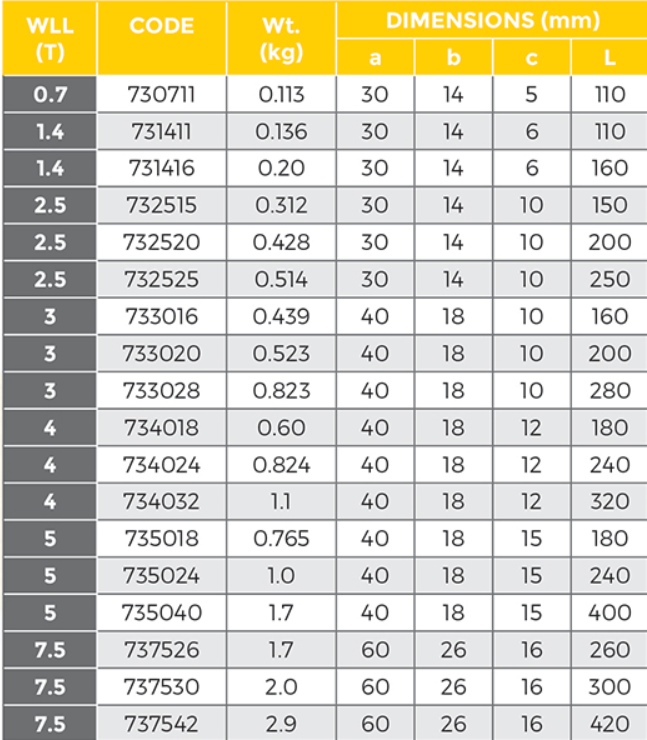

  • Suitable for axial and angled lifts (see technical chart)

  • Compatible with heavy-duty clutches and formers

Applications:

  • Large precast bridge and infrastructure elements

  • Precast tanks, vaults, and culverts

  • Structural blocks and foundation panels

  • Civil engineering and commercial construction

  • High-mass precast production yards

Why Choose the Spread Anchor 7.5T 60x420mm?

  • Designed for the most demanding lifting requirements

  • Provides maximum safety in thick and heavy concrete sections

  • Reusable and durable under proper site handling

  • Fully compatible with industrial-grade lifting systems

Call to Action (Order Online):
Ensure safe lifting of your heaviest precast elements with the Spread Anchor 7.5T 60x420mm.
Order online now from WA Lifting Equipment—your expert source for certified precast lifting solutions built to perform.
