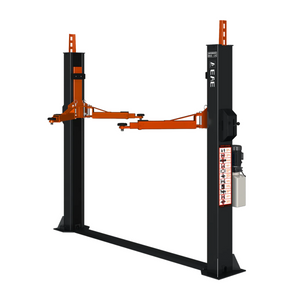

Two Post Hoist Base Plate 4,200kg Capacity; EE-62BE.42T

Two Post Hoist Base Plate 4,200kg Capacity; EE-62BE.42T

WALIFT
SKU:
EE-62BE.42T
$5,490.00
(No reviews yet)
Weight:
650.00 KGS
Current Stock:
Description

Two Post Hoist Base Plate 4,200kg Capacity; EE-62BE.42T



FEATURES:

  • 4200KG Safe Working Limit
  • Lifting height of 1.9m
  • Overall height of 2.825m tall
  • Base Plate design
  • Fully electronic controls
  • Aluminium power unit
  • Available in 240V or 3 phase power
  • One-piece column
  • Curtain inside column
  • Combination screw pads plus 4WD adapter
  • Durable powder coating
  • Door protection pads
  • Includes
  • Hydraulic oil
  • Combination screw pads plus 4WD adapter
  • Options
  • EAE Low Profile Arm
  • EAE Tyre Holder Adapter
  • Zappi 7kw Untethered EV Charge Station
  • Safety
  • 24V controls with isolation switch
  • Pre-set hydraulic pressure and ram limit switch
  • Arm locks
  • Anti-surge valve
  • Carriages mechanically locked
  • Warranty
  • 5 years (structure) + 2 years electrical, mechanical, hydraulics. Parts & labour
  • Certification
  • Engineer Certified
  • Design Registered with Worksafe

SPECIFICATIONS:

  1. Capacity 4200 Kg
  2. Lock Release Electric
  3. Power 240V or 3 Phase
  4. Lifting Height 1900 mm
  5. Lifting Height with Adapters 2060mm
  6. Minimum Pad Height 100mm
  7. Overall Hoist Height 2825 mm
  8. Overall Hoist Width 3420 mm
  9. Width Between Columns 2840 mm
  10. Lifting Time 240v 50-55sec
  11. Lifting Time 3 Phase 35-40sec
  12. Arm Design Asymmetric
  13. Freight Dimensions L 2900mm W 480mm H 1050mm W 650KG

Click here to download product specification sheet
