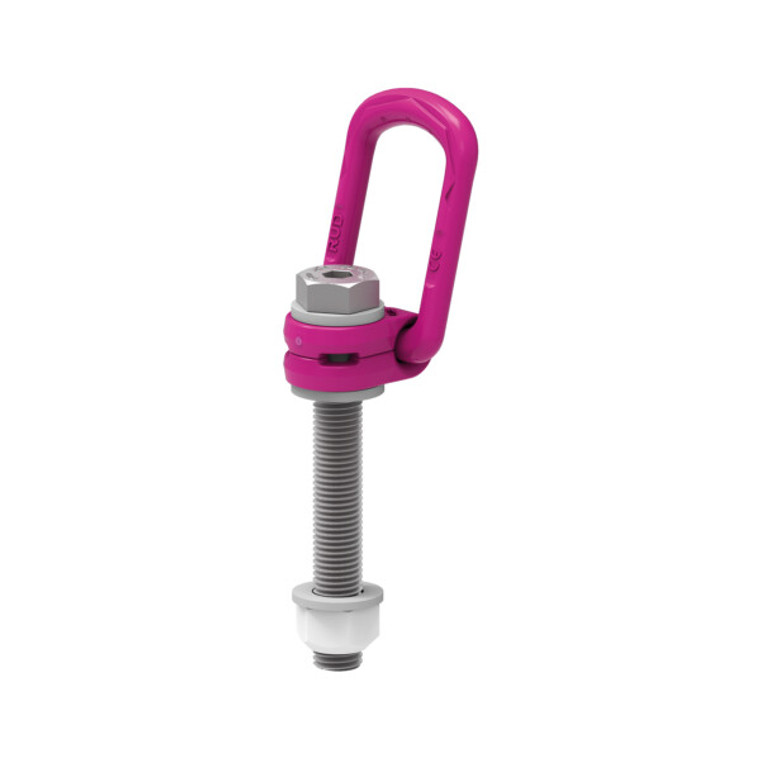

VLBG-PLUS Load Ring Vario (Long Series) - Metric Thread; RUD

Premium Lifting Point for Heavy-Duty Applications

The VLBG-PLUS Load Ring with Metric Thread and Variable Length is a high-performance lifting point engineered for maximum safety and flexibility. Designed by RUD, this load ring features a fully rotational and pivoting design, making it ideal for multi-directional lifting operations. With an increased Working Load Limit (WLL) compared to standard lifting rings, the VLBG-PLUS ensures enhanced safety, efficiency, and durability in demanding industrial applications.

Key Features

✔️ Increased WLL Capacity – Up to 45% higher load rating than standard VLBG models.
✔️ Fully Rotational (360°) & Pivoting (180°) – Enables safe and precise load handling in all lifting directions.
✔️ Variable Thread Length – Customizable thread lengths to suit different mounting thicknesses.
✔️ Patented Safety Features – Unique locking system prevents accidental unscrewing under load.
✔️ High-Tensile Steel Construction – Hardened, wear-resistant material for long-term durability.
✔️ Pink Powder Coating – RUD’s patented coating indicates temperature resistance and protects against corrosion.
✔️ Complies with Australian Safety Standards – Certified to AS 2318 for lifting applications.

Applications

✔️ Heavy Machinery Lifting – Ideal for mining, construction, and industrial equipment.
✔️ Offshore & Marine – Designed for extreme environments and high-load applications.
✔️ Engineering & Manufacturing – Suitable for precision lifting of fabricated components.
✔️ Transport & Logistics – Secure lifting points for freight and cargo handling.

Why Choose the VLBG-PLUS Load Ring?

✔️ Engineered for Safety – Eliminates the risk of load shifting and side loading failures.
✔️ Versatile & Reliable – Works with cranes, hoists, and rigging assemblies.
✔️ Optimized for Efficiency – Reduces wear & tear on lifting equipment.

The VLBG-PLUS Load Ring - Metric Thread with Variable Length is the ultimate high-strength, multi-directional lifting solution for industries requiring safety, reliability, and superior performance.

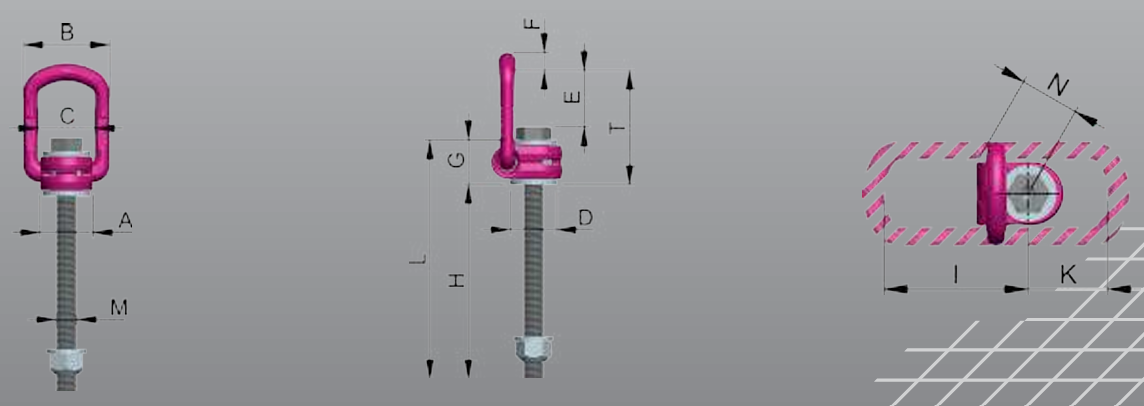

Type WLL (t) Weight (kg/pc) T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) K (mm) L (mm) M (mm) N (mm) Torque (Nm) Ref No.
VLBG-PLUS 0.63t M8 0.63 0.35 75 30 54 34 24 40 10 29 8-76 75 45 37-105 M8 32 30 8600470
VLBG-PLUS 0.9t M10 0.9 0.4 75 30 54 34 24 39 10 29 10-96 75 45 39-125 M10 32 60 8600471
VLBG-PLUS 1.35t M12 1.35 0.48 75 32 54 34 26 38 10 29 12-116 75 45 41-145 M12 32 150 8600472
VLBG-PLUS 2t M16 2 0.96 85 33 56 36 30 39 13.5 36 16-149 86 47 52-185 M16 38 150 8600474
VLBG-PLUS 3.5t M20 3.5 1.67 110 50 82 54 45 55 16.5 43 20-187 113 64 63-230 M20 48 400 8600476
VLBG-PLUS 4.5t M24 4.5 2.28 125 50 82 54 45 67 18 43 24-222 130 78 67-265 M24 48 760 8600478
VLBG-PLUS 6.7t M30 6.7 4.58 147 60 103 65 60 67 22.5 61 30-279 151 80 91-340 M30 67 1000 8600480
VLBG-PLUS 8t M36 8 7.2 197 77 122 82 70 97 26.5 77 36-223 205 110 113-300 M36 87 800 8600289
VLBG-PLUS 10t M42 10 9.28 197 77 122 82 70 94 26.5 77 42-273 205 110 119-350 M42 70 1000 8600290
VLBG-PLUS 15t M42 15 13.78 222 95 156 100 85 109 36 87 42-263 230 130 129-350 M42 100 1500 8600291
VLBG-PLUS 20t M48 20 14.89 222 95 156 100 95 105 36 87 48-303 230 130 135-350 M48 100 2000 8600292



Tried and tested – Full WLL in all directions
  • Comes with DIN Collared Nut
  • RUD crack tested ICE/Class 10.9
  • Optimum WLL with captive but exchangeable ICE bolt
  • ICE bolt made from patented material
  • Comprehensive range of threads
  • Can be cut to specific applications
  • RUD 4:1 safety factor
