VLW 2-6/7/8/4-6 G10 Oversized Multi Master Link

Pewag

$188.71

(No reviews yet) Write a Review

SKU:: 4016146
UPC:
Availability:: Call to check availability
Weight:: 3.54 KGS
Shipping:: Calculated at Checkout

Current Stock:

Quantity:

Description

This suspension kit is for the manufacture of II and IV strand slings in the assembled or welded system according to EN 1677-4 with mechanical properties corresponding to quality class 10.

Effortless adaptability.

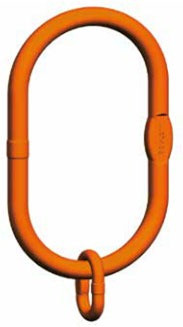

This master link assembly is designed for the effortless creation of II- and IV-leg chain slings in the assembled or welded system
The flattened section on the transition links opens up additional, universal connection possibilities (measurements can be obtained from the product “BW”)
Extra-large rings make this master link assembly the perfect partner for crane hooks according to DIN 15401 up to no. 25 and according to DIN 15402 up to no. 32
This master link assembly also comes with CE-marking and BG-approval and was manufactured according to EN 1677-4, with the mechanical values of the G10 programme
A full operating manual provides detailed information on all potential areas of use

Specification table

Code	Consisting of	Working load limit	Fits on single hook acc. DIN 15401 no.	Fits on single hook acc. DIN 15401 no.	For 2-leg slings	For 3- and 4-leg slings
		0°-45°
		[kg]
VLW 2-6/7/8/4-6	LW 22 + 2 BW 13	3550	25	32	6/7/8	6
VLW 2-10/4-7/8	LW 27 + 2 BW 16	5600	25	32	10	7/8
VLW 2-13/4-10	LW 32 + 2 BW 20	9500	25	32	13	10
VLW 2-16/4-13	LW 40 + 2 BW 22	14000	25	32	16	13
VLW 2-19/4-16	LW 40 + 2 BW 26	21200	25	32	19	16

Code	e	d	t	w	s	d1	t1	w1	Weight
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
VLW 2-10/4-7/8	410	27	340	180	20	17	70	34	5,12
VLW 2-13/4-10	425	33	340	180	27	20	85	40	7,81
VLW 2-16/4-13	455	40	340	180	29	23	115	50	12,32
VLW 2-19/4-16	480	40	340	180	29	27	140	65	13,84
VLW 2-6/7/8/4-6	394	23	340	180	17	13	54	25	3,54
