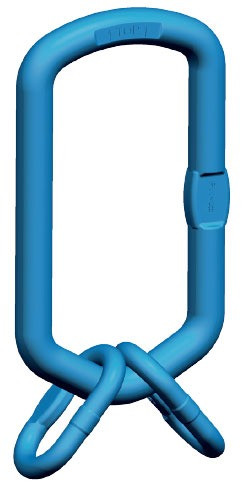

The new oversize lifting eye stands out for its asymmetrical shape and is suitable for the assembly of II- and IV-leg chain slings, both in the assembled and in the welded system.
The improved design of the upper curve optimises the contact surface of the assembly on the single hook, manufactured according to DIN 15401. The great plus of this master link assembly is the geometry of the lower area, which allows for the simple and quick assessment of the angle of the inclination, thus greatly increasing safety and efficiency during day-to-day operations and making miscalculations a thing of the past.
Extra-large rings make this master link assembly the perfect partner for crane hooks according to DIN 15401 up to no. 25. The assembly comes with CE-marking and is manufactured according to EN 1677-4, with mechanical values according to G12.
Intended use as master link assembly in II-leg, III-leg and IV-leg chain slings.
Specifications
- Indication of the inclination angle by the angular shape at the bottom of the master link.
- 0°-45°: Transition links are at the bottom of the master link.
- 45°-60°: Transition links move up to the lower side corners of the master link.
- Simple and quick connection of the master link assembly to the chain by Connex connecting links (product code CWP).
- Attachment is easily possible without any special tools.
- LWP Oversized master link designed for single hook size no. 25 according to DIN 15401 and double hook size no. 32 according to DIN 15402.
- Clearly visible marking "TOP" to facilitate correct installation of the master link.
- Optimized design with less inner width to ensure good mountability and minimum weight.
- Optimized contact on the surface of the crane hook to avoid unfavorable point loads.
Specification table
| Code | Consisting of | WLL 0°–45° (kg) | WLL 45°–60° (kg) | Single hooks DIN 15401 | Double hooks DIN 15402 | 2-leg slings | 3–4-leg slings | |
|---|---|---|---|---|---|---|---|---|
 |
VLWP 2-7/8 | LWP 22 + 2 BWP 13 | 4250 | 3000 | 25 | 32 | 7/8 | – |
| VLWP 2-10/4-7/8 | LWP 26 + 2 BWP 16 | 7100 | 5000 | 25 | 32 | 10 | 7/8 | |
| VLWP 4-13 | LWP 36 + 2 BWP 26 | 17000 | 11800 | 25 | 32 | – | 13 | |
| VLWP 2-16 | LWP 36 | 17500 | 12500 | 25 | 32 | 16 | – | |
| VLWP 4-16 | LWP 40 + 2 BWP 32 | 26500 | 19000 | 25 | 32 | – | 16 |
| Code | e (mm) | d (mm) | t (mm) | w (mm) | d1 (mm) | t1 (mm) | w1 (mm) | s (mm) | Weight (kg/pc) |
|---|---|---|---|---|---|---|---|---|---|
| VLWP 2-7/8 | 394 | 23 | 340 | 155 | 13 | 54 | 25 | 16.5 | 3.54 |
| VLWP 2-10/4-7/8 | 410 | 27 | 340 | 155 | 17 | 70 | 34 | 21 | 5.12 |
| VLWP 2-13/4-10 | 425 | 33 | 340 | 155 | 20 | 85 | 40 | - | 8.00 |
| VLWP 4-13 | 480 | 38 | 340 | 155 | 27 | 140 | 65 | 29 | 12.74 |
| VLWP 2-16 | 340 | 38 | 340 | 155 | – | – | – | 29 | 8.9 |
| VLWP 4-16 | 490 | 40 | 340 | 155 | 33 | 150 | 70 | 29 | 16.22 |
