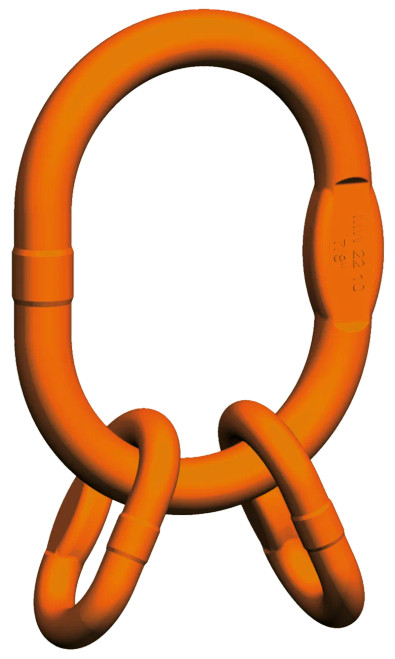

VMW 16 G10 Enlarged Multi Master Link

Pewag

$321.98

(No reviews yet) Write a Review

Current Stock:

Quantity:

This master link assembly for III- and IV-leg chain slings in assembled or welded systems complies with EN 1677-4 and the mechanical values for G10

True greatness for your load.

This powerful package comes with CE-marking and a full operating manual
A flattened section on the transition links opens up additional, universal connection possibilities (measurements can be obtained from the product “BW”)
Thanks to the use of MW links, this master link assembly has larger inside dimensions than the VW IV-leg master link assembly and can thus also be used for the next size up crane hooks
See table below for the maximum crane hook size as specified by DIN 15401 and DIN 15402

Code	Consisting of	load capacity	Fits on single hook acc. DIN 15401 no.	Fits on double hook acc. DIN 15402 no.
		0°-45°
		[kg]
VMW 6	MW 18 + 2 BW 13	4200	6	8
VMW 7/8	MW 22 + 2 BW 16	6600	10	12
VMW 10	MW 26 + 2 BW 20	10100	10	12
VMW 13	MW 32 + 2 BW 22	15700	12	16
VMW 16	MW 36 + 2 BW 26	21200	20	25
VMW 19/20	MW 56 + 2 BW 32	34100	50	63
VMW 22	MW 56 + 2 BW 36	40000	50	63

Code	e	d	t	w	s	d1	t1	w1	Weight
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
VMW 19/20	500	56	350	250	46	33	150	70	28,3
VMW 6	214	19	160	95	14	13	54	25	1,43
VMW 7/8	240	23	170	105	17	17	70	34	2,46
VMW 10	275	27	190	110	20	20	85	40	4,01
VMW 13	345	33	230	130	26	23	115	50	7,1
VMW 16	415	38	275	150	29	27	140	65	11,3
VMW 22	520	56	350	250	46	36	170	75	30,22
