A RUD VRM Eye Nut with metric coarse thread, featuring a forged high-strength body, designed for safe vertical lifting and anchoring in industrial and rigging environments.

VRM / Eye nut metric coarse thread

Rud
$155.00
(No reviews yet)
Weight:
0.06 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description

The RUD VRM Eye Nut (Metric Coarse Thread) is a load-rated lifting nut designed for use in vertical lifting applications, offering a simple yet effective solution for lifting and anchoring threaded components. Manufactured from forged high-tensile steel, the VRM provides strength, reliability, and durability in industrial environments.

With a smooth round eye, the VRM is suitable for direct connection to hooks, slings, and shackles. Its metric coarse thread allows for quick and secure attachment to compatible bolts, studs, and lifting points on equipment or fabricated structures.

Features

  • Metric coarse thread – standardised and compatible with tapped holes

  • Forged steel construction – built for industrial-grade performance

  • Load-rated for vertical lifts – ideal for secure and direct lifting applications

  • Smooth round eye – fits hooks, slings, and shackles with ease

  • Compact and low-profile design – simple and efficient for fixed lifting points

  • Corrosion-resistant finish – ensures long-term durability

  • Clearly marked with WLL and traceability codes

Applications

  • Vertical lifting of machinery and components

  • Fixed lifting points on structural steel or equipment

  • Transport and rigging operations

  • Fabrication and assembly workstations

  • General-purpose industrial lifting and anchoring

Why Choose the RUD VRM Eye Nut?

  • Strong and simple – forged for durability and ease of use

  • Ideal for vertical lifting – safe and secure under axial loads

  • Standard metric thread – easy integration into existing equipment

  • Reliable RUD quality – trusted worldwide for lifting hardware

Order Online at WA Lifting Equipment

The RUD VRM Eye Nut – Metric Coarse Thread is a dependable choice for safe vertical lifting and anchoring. Order now from WA Lifting Equipment and get the trusted performance your operation demands.

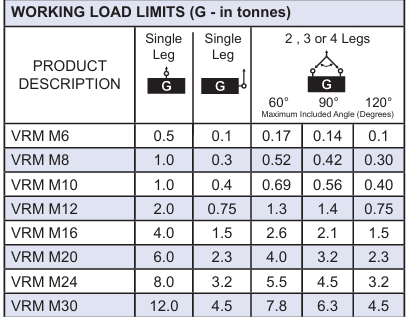

Type WLL (t) Weight (kg) A B C D E G H K L M Rmax S SW Ref No
VRM-M6 0.1 0.06 28 9 7 20 23 28 16 37 11 M6 16 13 9 7900786
VRM-M8 0.3 0.1 34 11 8.5 25 25 28 20 47 14 M8 20 16 12 7992989
VRM-M10 0.4 0.1 34 11 8.5 25 25 28 20 47 14 M10 20 16 12 7990311
VRM-M12 0.75 0.2 42 13 10 30 30 34 25 56 17 M12 24 20 17 7990312
VRM-M16 1.5 0.3 51 15 14 35 35.5 40 30 65 21 M16 30 22 19 7990314
VRM-M20 2.3 0.5 57 17 16 40 40 50 34 75 23 M20 37 29 24 7990315
VRM-M24 3.2 0.9 69 21 19 48 50 60 40 90 29 M24 45 35 30 7990316
VRM-M30 4.5 1.5 86 26 24 60 60 75 52 112 34 M30 56 44 36 7993008
