Description
The RUD VRS-F / Starpoint Eye Bolt with Metric Coarse Thread is a high-performance lifting point designed for superior safety and flexibility. Engineered with a rotatable load ring and forged from alloy steel, the VRS-F allows for full 360° rotation and 180° pivoting, ensuring optimal load alignment during lifting operations.
Ideal for dynamic lifting and turning applications, this eye bolt features a clearly marked working load limit and is 100% magnetic crack detected and proof load tested. The Starpoint design also includes a patented wear indicator and a distinctive pink powder-coated finish for enhanced visibility and corrosion resistance.
Features
-
Metric coarse thread for quick and reliable installation
-
360° rotatable lifting ring – aligns automatically with the direction of pull
-
Load-optimised design reduces lateral force on the thread
-
Forged, high-tensile body – tested for heavy lifting applications
-
Marked with WLL (Working Load Limit) and batch number for traceability
-
Vibrant pink powder-coated finish for visibility and corrosion resistance
-
Designed for repeated use in demanding environments
Applications
-
Machinery lifting and rigging – Easy integration into tapped components
-
Maintenance and servicing – Quick attachment for lifting engines, gearboxes, and pumps
-
Fabrication and steelwork – Reliable lifting point for structural components
-
Construction and transport – Use as an anchor for slings and lifting devices
-
Rotational lifting tasks – Ideal for lifting while turning or aligning heavy loads
Why Choose the RUD VRS-F Starpoint Eye Bolt?
-
Fully rotatable and pivoting – Superior safety and lifting control
-
High-visibility and heavy-duty – Forged to handle tough industrial use
-
Easy installation – Threaded design fits directly into standard metric tapped holes
-
Trusted German engineering by RUD – Reliable, tested, and built to perform
Order Online at WA Lifting Equipment
The RUD VRS-F Starpoint Eye Bolt (Metric Coarse Thread) is the ultimate solution for safe, multi-directional lifting in industrial and construction applications. Order now from WA Lifting Equipment and lift with confidence.

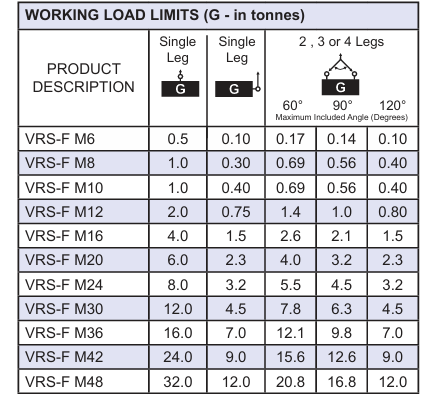

Type | WLL (t) | Weight (kg) | A | B | C | D | E | G | K | L | M | N | S | Ref.-No. VRS | Ref.-No. VRS-F |
VRS-M6 | 0.1 | 0.06 | 27 | 9 | 7 | 20 | 23 | 28 | 37 | 6 | 6 | 6 | 13 | 7900909 | 7900906 |
VRS-M8 | 0.3 | 0.1 | 34 | 11 | 8.5 | 25 | 25 | 28 | 47 | 6 | 6 | 6 | 16 | 7100554 | 8500911 |
VRS-M10 | 0.4 | 0.1 | 34 | 11 | 8.5 | 25 | 25 | 28 | 47 | 6 | 6 | 6 | 16 | 7982219* | 7104029 |
VRS-M12 | 0.75 | 0.2 | 42 | 13 | 10 | 30 | 30 | 36 | 56 | 12 | 6 | 12 | 18 | 7982220* | 7101313 |
VRS-M16 | 1.5 | 0.3 | 49 | 15 | 14 | 35 | 35 | 46 | 65 | 24 | 6 | 16 | 22 | 7982221** | 7101314 |
VRS-M20 | 2.3 | 0.5 | 57 | 17 | 16 | 40 | 40 | 50 | 70 | 30 | 6 | 27.5 | 27.5 | 7982222** | 7101315 |
VRS-M24 | 3.2 | 0.7 | 65 | 20 | 20 | 48 | 48 | 60 | 90 | 36 | 10 | 33 | 33 | 7982223** | 7101323 |
VRS-M30 | 4.5 | 1.7 | 86 | 26 | 24 | 60 | 60 | 75 | 112 | 45 | 11 | 41.5 | 41.5 | 7982224*** | 7101317 |
VRS-M36 | 7 | 2.9 | 103 | 32 | 29 | 72 | 75 | 90 | 135 | 54 | 16 | 36 | 36 | 7984198 | 7984201 |
VRS-M42 | 9 | 4.6 | 120 | 38 | 34 | 82 | 85 | 105 | 158 | 63 | 23 | 43 | 43 | 7984199 | 7984202 |
VRS-M48 | 12 | 7 | 137 | 43 | 38 | 94 | 100 | 120 | 180 | 72 | 27 | 48 | 48 | 7984200 | 7984203 |
