A RUD VRS-F StarPoint Eye Bolt with UNC thread, featuring a 360° rotatable lifting ring, compact forged design, and high-visibility finish for secure and safe lifting.

VRS-F / Starpoint eye bolt UNC thread

Rud
$106.00 - $861.00
(No reviews yet)
Weight:
0.12 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description

The RUD VRS-F StarPoint Eye Bolt (UNC Thread) is a fully rotatable, load-rated lifting point designed to meet the needs of industries using imperial thread standards. With a 360° freely rotating ring, the VRS-F aligns naturally with the direction of force during lifting, ensuring safety and reducing side loading.

Made from forged high-tensile steel, the VRS-F is suitable for a wide range of lifting and turning applications where secure, directional flexibility is required. Ideal for machinery, dies, fabricated parts, and maintenance tasks, the bolt features an UNC (imperial) thread for compatibility with standard North American and international applications.

Features

  • UNC thread – suitable for installations requiring imperial threads

  • 360° rotating lifting ring – aligns automatically with load direction

  • Load-rated and clearly marked with WLL and batch ID

  • Forged steel construction – high strength and durability under load

  • Compact and low-profile design – ideal for tight spaces

  • Corrosion-resistant powder coating – long-lasting visibility and protection

  • Compatible with hooks, shackles, slings, and other lifting gear

Applications

  • Industrial equipment and machine lifting

  • Maintenance and plant servicing

  • Fabrication and structural lifting

  • Transport and logistics rigging

  • North American and imperial standard installations

Why Choose the RUD VRS-F StarPoint (UNC Thread)?

  • Designed to eliminate side loading through full rotation

  • Quick installation with UNC (imperial) thread

  • Suitable for dynamic and directional lifting

  • Backed by RUD’s globally trusted lifting technology

Order Online at WA Lifting Equipment

The RUD VRS-F StarPoint Eye Bolt – UNC Thread delivers safe, directional, and flexible lifting performance for your imperial-threaded applications.
Order today from WA Lifting Equipment for premium RUD hardware built for reliability.

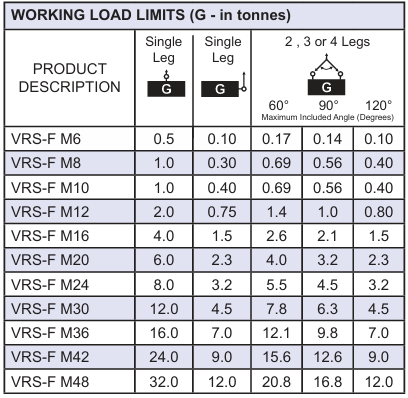

Type WLL (t) Weight (kg) A B C D E G K L M N S Ref.-No. VRS Ref.-No. VRS-F
VRS-3/8"-16UNC 0.4 0.1 34 11 8.5 25 25 28 47 15 3/8" 1/4" 15 7103969 7104480
VRS-1/2"-13UNC 0.75 0.2 42 13 10 30 30 34 56 18 1/2" 5/16" 18 7103960 7104481
VRS-5/8"-11UNC 1.5 0.3 49 15 14 35 40 35 65 22 5/8" 3/8" 22 7103961 7104482
VRS-3/4"-10UNC 2.3 0.5 53 17 16 40 40 50 75 25 3/4" 1/2" 27.5 7103962 7104483
VRS-7/8"-9UNC 2.3 0.6 57 17 16 40 50 60 75 32 7/8" 1/2" 27.5 7103963 7104484
VRS-1"-8UNC 3.2 0.9 69 21 19 48 48 60 90 33 1" 9/16" 33 7103964 7104485
VRS-1 1/4"-7UNC 4.5 1.7 86 26 24 60 60 75 112 45 1 1/4" 5/8" 41.5 7103965 7104486
VRS-1 1/2"-6UNC 7 2.9 103 32 29 72 75 90 135 54 1 1/2" 7/8" 49.5 7103966 7984221
VRS-1 3/4"-5UNC 9 4.6 120 38 34 82 85 105 158 63 1 3/4" 1" 58 7103967 7104488
VRS-2"-4.5UNC 12 7 137 43 38 94 100 120 180 72 2" 1 1/8" 66 7103968 7984223
