A RUD VRS-F Starpoint Eyebolt VARIO featuring adjustable metric coarse thread, a 360° rotatable body, and load-rated design—engineered for safe and precise lifting at variable depths.

VRS-F / Starpoint eyebolt vario length metric coarse thread

Rud
$201.00 - $585.00
(No reviews yet)
Weight:
0.12 KGS
Current Stock:
Adding to cart… The item has been added
Description

Description

The RUD VRS-F Starpoint Eyebolt VARIO (Metric Coarse Thread) is a fully rotatable lifting point with an adjustable-length thread, offering unmatched flexibility for lifting applications where material thickness varies. Based on the trusted VRS-F Starpoint design, this VARIO version integrates a depth-adjustable bolt using a locking nut system—allowing a perfect, secure fit for different installation requirements.

The 360° rotatable ring aligns automatically with the direction of pull, reducing the risk of side loading and improving load control. Made from high-tensile forged steel and powder-coated for corrosion resistance, the VRS-F VARIO is a durable and safety-focused solution for industrial and rigging environments.

Features

  • Metric coarse thread with adjustable VARIO length – adapts to variable mounting depths

  • 360° rotatable ring – aligns with the direction of pull for safe lifting

  • Forged high-strength steel construction – engineered for industrial use

  • Locking nut system – ensures secure installation and load transfer

  • Compact and efficient design – perfect for tight or recessed mounting points

  • Clearly marked with WLL and traceability codes

  • Powder-coated for visibility and corrosion resistance

  • Simple to install, remove, and reuse across applications

Applications

  • Machinery lifting and maintenance – especially when equipment has non-standard mounting depths

  • Fabrication and assembly lines – versatile for multi-use lifting stations

  • Construction and infrastructure – ideal for equipment with varying material thicknesses

  • Steel and structural handling – safe for off-angle or dynamic lifts

  • Transport and rigging – reliable in changeable setups and repeat operations

Why Choose the RUD VRS-F Starpoint VARIO?

  • Adjustable-length thread – perfect for installations where depth varies

  • Auto-aligning swivel ring – improves lifting safety and control

  • Trusted by professionals worldwide – backed by RUD’s quality and engineering

  • Versatile, visible, and robust – designed for real-world lifting challenges

Order Online at WA Lifting Equipment

The RUD VRS-F Starpoint Eyebolt VARIO (Metric Coarse Thread) is the ideal choice for variable-depth, safe, and adaptable lifting. Designed to meet the needs of modern industry—order now from WA Lifting Equipment.

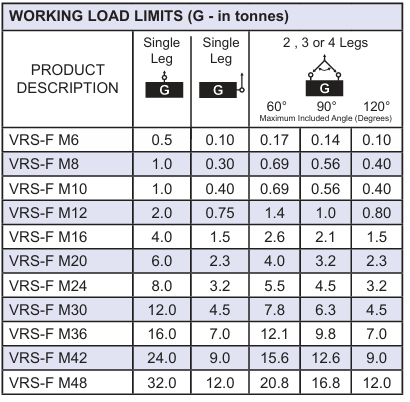

Type WLL (t) Weight (kg) A B C D E G K L M N S Ref.-No. VRS Ref.-No. VRS-F
VRS-M6 0.1 0.06 27 9 7 20 23 28 37 6 6 6 13 7900909 7900906
VRS-M8 0.3 0.1 34 11 8.5 25 25 28 47 6 6 6 16 7100554 8500911
VRS-M10 0.4 0.1 34 11 8.5 25 25 28 47 6 6 6 16 7982219* 7104029
VRS-M12 0.75 0.2 42 13 10 30 30 36 56 12 6 12 18 7982220* 7101313
VRS-M16 1.5 0.3 49 15 14 35 35 46 65 24 6 16 22 7982221** 7101314
VRS-M20 2.3 0.5 57 17 16 40 40 50 70 30 6 27.5 27.5 7982222** 7101315
VRS-M24 3.2 0.7 65 20 20 48 48 60 90 36 10 33 33 7982223** 7101323
VRS-M30 4.5 1.7 86 26 24 60 60 75 112 45 11 41.5 41.5 7982224*** 7101317
VRS-M36 7 2.9 103 32 29 72 75 90 135 54 16 36 36 7984198 7984201
VRS-M42 9 4.6 120 38 34 82 85 105 158 63 23 43 43 7984199 7984202
VRS-M48 12 7 137 43 38 94 100 120 180 72 27 48 48 7984200 7984203
