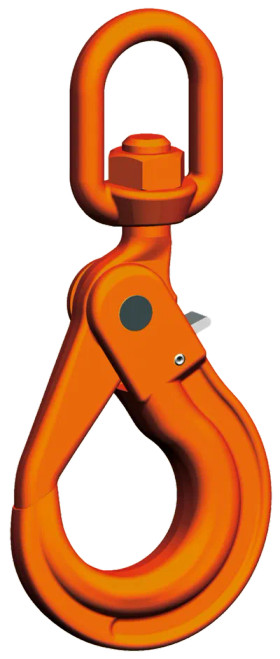

WLHBW 10 G10 Swivel Self Locking Hook

The self-closing and locking swivel safety load hook is equipped with an axial bearing, which allows it to rotate under load.

Rotates even under load.

Withstand operating temperatures of up to 120°C
Closes and locks automatically and comes with an axial bearing, ensuring that it may be rotated when under load, but not opened
suitable for Connex systems and also offers additional connecting options thanks to its large swivel casing
Its jaw opening is larger than the HSW eye hook, making it more flexible in terms of potential use
CE-marking and BG-approval
Compliance with EN 1677-3 and the mechanical values of G10
Assembly of the locking set is easy and quick and does not require any special tools
The safety catch set VLHW which forms the locking mechanism on the back of the hook is also available as a spare parts set

Code	Working load limit	e	h	a	w	w1	d2	g	s max.	Weight
	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg/pc.]
WLHBW 5/6	1400	161	20	17	35	36	12	28	1	1,2
WLHBW 7/8	2500	182	26	20	35	36	12	34	1	1,55
WLHBW 10	4000	215	30	29	42	40	16	45	1	2,14
WLHBW 13	6700	269	40	35	49	47	20	52	1.5	4,43
WLHBW 16	10000	319	50	41	60	60	24	60	2	7,35
WLHBW 19/20	16000	394	62	50	80	86	36	70	2	14,3
WLHBW 22	19000	430	65	58	80	80	36	81	2	17
