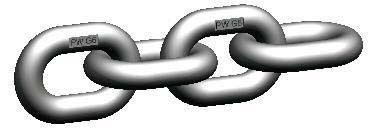

WOX 13mm Stainless Steel Chain

This stainless steel lifting chain is made from high-grade stainless steel, with a load capacity that is 25 % higher than that of G5 lifting chains.

Clean, tidy and hard-working.

The chains are tested at 100 % of their load capacity, which is an impressive 12,000 kg!
Higher resistance to acids and caustics than the standard lifting chains
Guaranteed to be compatible with the Connex CWI links, with dimensions that are similar to DIN 5687-1 and EN 818-2
Clearly identifiable by stamp
Particularly suited for use in water and wastewater applications
Can also be used in connection with chemicals and food products, but with certain restrictions

Code	Nominal diameter	Working load llimit	Standard	Pitch t	inside width	Outside width	Breaking force	Weight
	dn	WLL	delivery length	[mm]	b1 min.	b2 max.	[kN]	[kg/m]
	[mm]	[kg]	[m]		[mm]	[mm]
WOX 4-6	4	400	LFM	12	5,8	14,8	16	0,4
	WOX 5-6	5	630	LFM	15,1	7,5	18,5	25
WOX 6-6	6	900	LFM	18	8	21,5	37,5	0,88
WOX 6-6 D	6	900	LFM	18	8	21,5	37,5	0,88
WOX 7-6	7	1250	LFM	21	9,5	25,2	50	1,19
WOX 8-6	8	1600	LFM	24	10,8	28,6	63	1,53
WOX 8-6 D	8	1600	LFM	24	10,8	28,6	63	1,53
WOX 10-6	10	2500	LFM	30	13,5	36	100	2,25
WOX 10-6 D	10	2500	LFM	30	13,5	36	100	2,25
WOX 13-6	13	4250	LFM	39	17,5	46,8	170	4,05
WOX 16-6	16	6300	LFM	48	21,5	57,6	250	6
WOX 20-5	20	8000	LFM	60	27	72	314	9,29
WOX 26-4+	26	12000	LFM	78	35	93,6	471	16,2
