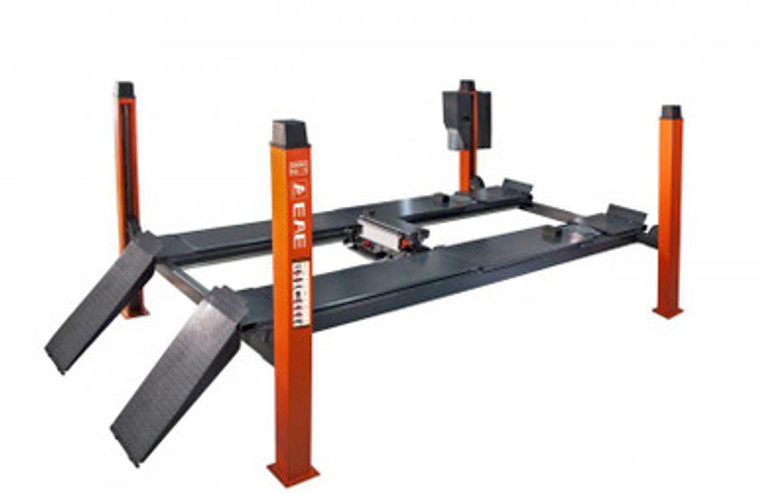

High-quality image of a Four Post Wheel Alignment Hoist (EE-6435V2.B.48L.40T) with a 4,000KG capacity, featuring wheel alignment-optimized runways, a hydraulic lifting system, and integrated alignment slots for professional workshops.

Four Post Wheel Alignment Hoist 4,000kg Capacity; EE-6435V2.B.48L.40T

WALE
SKU:
EE-6435V2.B.48L.40T
$14,290.00
(No reviews yet)
Weight:
1,320.00 KGS
Current Stock:
Adding to cart… The item has been added
Description

Four Post Wheel Alignment Hoist 4,000KG Capacity EE-6435V2.B.48L.40T – Precision Vehicle Lifting Solution

Product Description

The Four Post Wheel Alignment Hoist 4,000KG Capacity EE-6435V2.B.48L.40T is a high-precision vehicle lift designed for professional workshops, tire shops, and service centers specializing in wheel alignment, inspections, and general vehicle servicing. Built with precision-engineered runways and integrated alignment features, this hoist provides stability, accuracy, and ease of use, ensuring efficient wheel alignment procedures.

  • 4,000KG Lifting Capacity – Suitable for sedans, SUVs, 4WDs, and light commercial vehicles.
  • Wheel Alignment-Optimized Runways – Designed for accurate vehicle positioning and alignment adjustments.
  • Four-Post Heavy-Duty Design – Ensures maximum stability and safety during servicing.
  • Integrated Turntable & Slip Plate Slots – Allows for precise front and rear wheel alignments.
  • Hydraulic Lifting System – Provides smooth, controlled lifting and lowering.
  • Multiple Safety Locking Positions – Enables secure height adjustments for precise work.
  • Heavy-Duty Steel Construction – Engineered for long-lasting durability and high performance.
  • Powder-Coated Finish – Corrosion-resistant for extended service life in professional workshops.

The EE-6435V2.B.48L.40T Four Post Wheel Alignment Hoist is the ultimate choice for workshops and service centers that require high-precision alignment capabilities while maintaining strong lifting performance.

FEATURES:

  • 4000KG lifting capacity
  • Long slip plates and adjustable turntable positions to suit a variety of wheelbases
  • Electric release and UP/DOWN button to control the lift
  • Wide platforms and low profile runways
  • 3000 mm distance between columns for wheel alignment
  • Drive-on ramps with Polymer rollers
  • 24V control system
  • Commercial grade cables and pulleys
  • Self-lubricating bushing and bearings
  • Aluminium motor with fan to avoid overheating

Includes

  • Hydraulic oil
  • RJ6 – Rolling Jack

Safety

  • Mechanically locks at each interval
  • Anti-surge valve
  • Cable slack locks in case of cable slack/failure
  • Platform non-synchronization alarm system
  • Buzzer sounds when platforms lowered to 300 mm above ground

Warranty

  • 5 years (structure) + 2 years (electrical and hydraulics)

Certification

  • Engineer Certified
  • Design Registered with Worksafe

Options

  • EAE Turntable Set

SPECIFICATIONS:



  • Capacity 4000kg
  • Lock Release Single point
  • Power 240v or 3 Phase
  • Column Height 2243mm
  • Lifting Height 1850mm
  • Clearance Under Runways 1625mm
  • Overall Width3460mm
  • Overall Length (incl. ramps) 6370mm
  • Overall Length (excl. ramps) 4888mm
  • Platform Width 630mm
  • Width Between Platforms 970mm
  • Platform Length 4880
  • Drive Through Clearance 3000mm
  • Freight Dimensions L 4900mm W 700mm H 740mm W 1320KG

**Freight charges may apply

Click here to download product specification sheet
