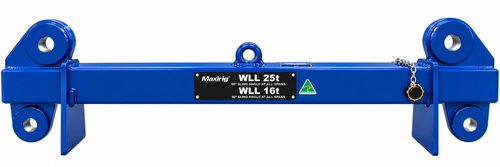

Maxirig 25T Telescopic Spreader Beam 2–3m
The Maxirig Telescopic Spreader Beam provides an adjustable lifting solution for loads requiring different lifting point spacings. Designed and manufactured in Australia, its telescopic construction allows the lifting span to be adjusted from 2 metres to 3 metres in 200mm increments.
Designed to distribute loads evenly when lifting with a crane or hoist, the beam features locking pins to secure the selected span. It provides a working load limit of 25 tonnes at a 60° included sling angle or 16 tonnes at a 90° included sling angle across all spans.
Features and specifications:
-
Adjustable lifting spans: 2,000, 2,200, 2,400, 2,600, 2,800 and 3,000mm.
-
WLL at 60° included sling angle: 25 tonnes at all spans.
-
WLL at 90° included sling angle: 16 tonnes at all spans.
-
Telescopic adjustment with locking pins.
-
Top lifting lugs suit 17T Grade S safety bow shackles.
-
Bottom load lugs suit 13T Grade S safety bow shackles.
-
Tare weight: 140kg excluding slings and shackles.
-
Designed and tested to AS 4991-2004.
-
Manufactured and tested in Australia.
The included sling angle is measured between the two upper sling legs. Refer to the manufacturer’s load chart and operating instructions before use. Not suitable for lifting personnel or personnel cages.
Contact WA Lifting Equipment for pricing and availability.
